LS146-M8規格書項目規格參數相對孔徑 (F No.)3.0焦距(Focal-Length)3.2mm光學后焦 (Optical Back Focal Length)4.47mm機械后焦(Flange Back Focal Length）3.6mm最大像面大小（MAX Image circle)?6.8鏡片構成（Lens structure)3G1P+IR接口 (Mount )M8*0.5視
| LS146-M8規格書 | ||||
| 項目 | 規格參數 | |||
| 相對孔徑 (F No.) | 3.0 | |||
| 焦距(Focal-Length) | 3.2mm | |||
| 光學后焦 (Optical Back Focal Length) | 4.47mm | |||
| 機械后焦(Flange Back Focal Length） | 3.6mm | |||
| 最大像面大?。∕AX Image circle) | ?6.8 | |||
| 鏡片構成（Lens structure) | 3G1P+IR | |||
| 接口 (Mount ) | M8*0.5 | |||
| 視場角(FOV ) | Sensor | D(對角)° | H(水平)° | V(垂直)° |
| 1/2.7 | 148 | 120 | 90 | |
| 畸變（TV Distortion) | <23% | |||
| 光學總長（Total Length) | 14.15mm | |||
| 操作溫度 (Operating temperature) | -20℃~+70℃ | |||
| IP防護等級：IP0 | Tavg>=88% @420-600nm | T=50% @650±10nm | Tavg<=5% @700-1050nm | |

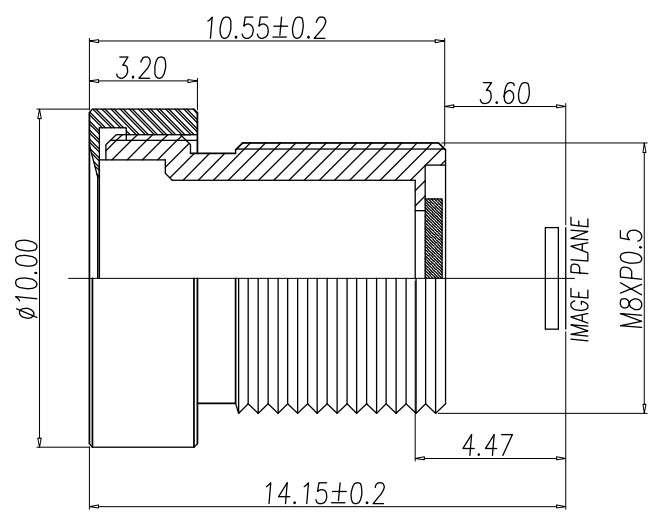

| 尺寸圖 |
| |||
| 深圳市聯視電子有限公司 TEL：13715318467 QQ：312331956 網址：www.yelens.com | ||||
