項目規格參數相對孔徑 (F No.)2.25焦距(Focal-Length)1.2光學后焦 (Optical Back Focal Length)2.82機械后焦(Flange Back Focal Length）2.02最大像面大?。∕AX Image circle)?5.1鏡片構成（Lens structure)1G3P接口 (Mount )M12*0.5視場角(FOV )SensorD(對
| 項目 | 規格參數 | |||
| 相對孔徑 (F No.) | 2.25 | |||
| 焦距(Focal-Length) | 1.2 | |||
| 光學后焦 (Optical Back Focal Length) | 2.82 | |||
| 機械后焦(Flange Back Focal Length） | 2.02 | |||
| 最大像面大?。∕AX Image circle) | ?5.1 | |||
| 鏡片構成（Lens structure) | 1G3P | |||
| 接口 (Mount ) | M12*0.5 | |||
| 視場角(FOV ) | Sensor | D(對角)° | H(水平)° | V(垂直)° |
| 1/4 | 141 | 122 | 100 | |
| 畸變（TV Distortion) | 12% | |||
| 最大主光線夾角（CRA) | 20 | |||
| 光學總長（Total Length) | 13.75 | |||
| 操作溫度 (Operating temperature) | -20℃~+80℃ | |||
IP防護等級：IP69 | Tavg>=88% @420-600nm | T=50% @650±10nm | Tavg<=5% @700-1050nm | |

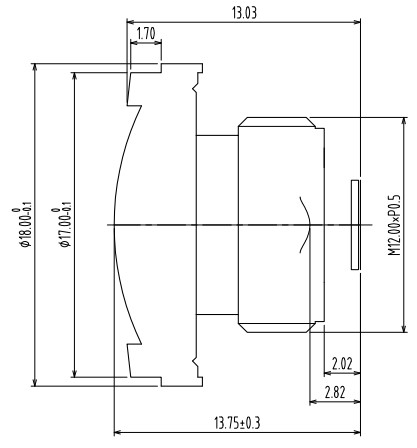

| 尺寸圖 |  | |||
