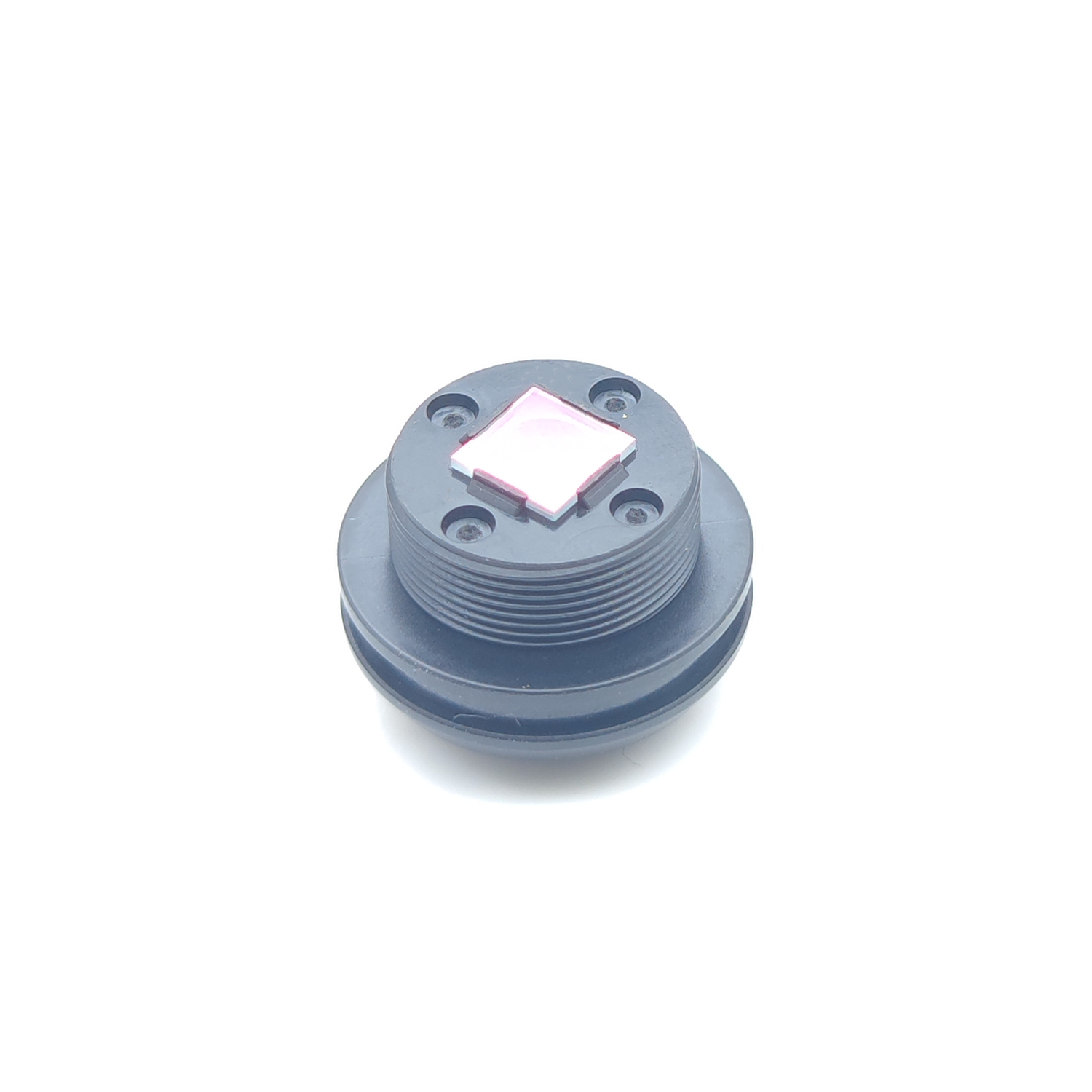

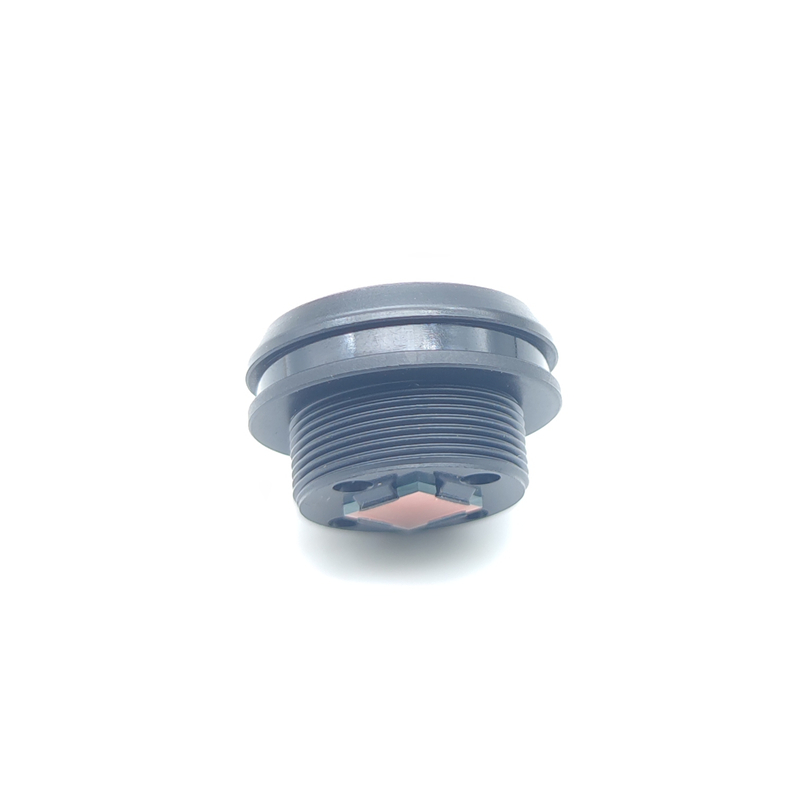

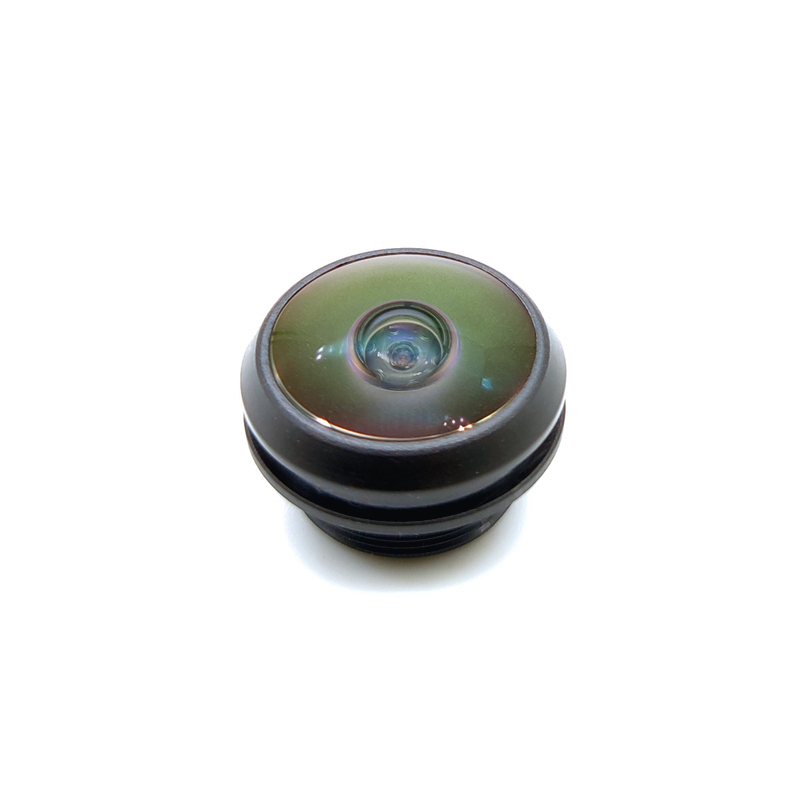

LS6235規格書項目規格參數相對孔徑 (F No.)2.0焦距(Focal-Length)1.0光學后焦 (Optical Back Focal Length)1.1機械后焦(Flange Back Focal Length）1.05成像面（Effective Area of imager)H3.6ｍｍｘV2.7ｍｍ鏡片構成（Lens structure)1 Glass+4Plastic+IR6
LS6235規格書 | ||||
| 項目 | 規格參數 | |||
| 相對孔徑 (F No.) | 2.0 | |||
| 焦距(Focal-Length) | 1.0 | |||
| 光學后焦 (Optical Back Focal Length) | 1.1 | |||
| 機械后焦(Flange Back Focal Length） | 1.05 | |||
| 成像面（Effective Area of imager) | H3.6ｍｍｘV2.7ｍｍ | |||
| 鏡片構成（Lens structure) | 1 Glass+4Plastic+IR650 | |||
| 解像力（Resolution) | Center800TV line Circumference400TV line | |||
| 接口 (Mount ) | M12*0.5 | |||
| 視場角(FOV ) | Sensor | D(對角)° | H(水平)° | V(垂直)° |
| 1/3 | 210 | 170 | 120 | |
| 光學總長（TTL) | 12.4 | |||
| 操作溫度 (Operating temperature) | -20℃~+80℃ | |||
IP防護等級：IP6 | Tavg>=88% @420-600nm | T=50% @650±10nm | Tavg<=5% @700-1050nm | |
| 尺寸圖 |  | |||
